User's Manual for the Rubber Roll Calculator
Application

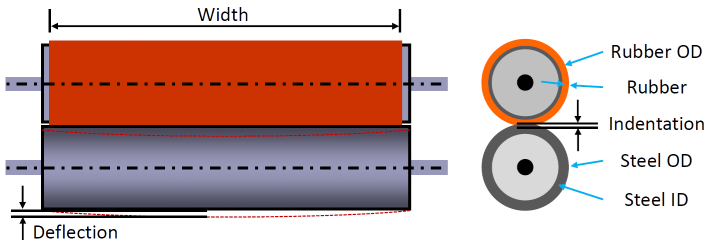

To find out what the effects of Rubber Hardness, Thickness, NipLoad, Roller Diameters/Widths and overall Web Speed might have on your rubber nip, calculating the Contact Width, the Depth of impression, Maximum Pressure, Contact Time and the potential need for a Crowned roller. Nip Mechanics is covered in Chapter 7 of The Web Handling Handbook by Roisum, Walker and Jones.The image, kindly (and expertly) supplied by Tim Walker at WebHandling.com shows the system.
How To
Choose the units of measure as either Metric or US. As you enter the key values you get instant feedback on the key outputs in the blue boxes. Some users prefer to use Text entry (it's more precise). Others tend to prefer Slider entry (especially on smaller devices). Feel free to choose whichever is the most useful for any occasion.While you can choose either Metric or US units, you cannot specify which type of units within those systems are used. The most common usage is fixed. For example, thickness will given in µm (0.000,001 meters) and mils (0.001 inches). Pay special attention to make sure that your input/output values are in the units specified or convert to/from as needed.
Rubber Footprint
The higher the pressure, the softer the rubber, the thicker the rubber and the higher the roller diameter, the bigger the impression Contact width of the nip. The Indent by which the rubber is deformed follows the same pattern except for the fact that the depth is decreased with larger rollers. The same applies to the maximum pressure (MaxP) within the nip.The effects of changing variables can seem surprisingly small.This is because the contact width scales as the 1/3 power of load, rubber modulus and rubber thickness. However, a change in Shore Hardness can have a big effect as the relationship of Shore to Modulus is highly non-linear.
Accuracy
The calculated values cannot possibly be accurate. This is mostly because of uncertainties about the rubber itself. The elastic modulus that is used in the calculations is in turn calculated from the Shore Hardness via an industry-standard approximation. Even if this were entirely accurate, rubbers don't behave like perfect elastic materials and once the rubber is moving at speed extra shear and thermal effects come in to play. These effects could have been included in the calculator but in general the only thing that gets measured is the static footprint which, implicitly, is what is calculated here. And even if the rubber calculations were correct, most of us don't know what load we are applying. Generally there is a pressure gauge in the system and we set it at a known pressure which, via various means, gets applied to the roller.Constant Load v Constant Gap
There is a myth that there is a difference between a Constant Load and a Constant Gap setup. In physics terms there is no difference. A load gives a (negative) gap and a (negative) gap (Depth in the language of RRC) gives a load. Indeed, one way to calibrate the load provided by your Constant Load system is to measure the footprint at a given load, measure the depth of compression of the rubber (i.e. the negative gap) and use the RRC to play with Load values till the Depth/Contact values come out satisfactorily (tweaking the value of Shore along the way to get the effective modulus right).Of course there is a practical difference in terms of how best to control the system and some prefer Constant Pressure and others prefer Constant Gap. What is important is to know what your Contact/Depth/PMax are for any given settings then use your favoured control system to ensure that your web gets the required treatment when passing through the nip, and that that treatment is in control as other parameters vary in your process.
Integrated Pressure
Your nip is supposed to give some combination of pressure and time in order to do what it has to do. The Time output is therefore a useful indication of whether the combination of nip load, rubber and speed will give be able to achieve the required goals. Doubling the speed is easy, so to keep the same time within the nip "all" that is required is to double the Contact. But as discussed above, the Contact depends on the NipLoad to the 1/3 power, so to double the Contact requires the NipLoad to be increased by a factor of 8. If this is impossible then some combination of increased pressure (a factor of 2.5?), reduced Shore Hardness (60 down to 40?) and increase of the roller diameters (50% more?) can give the required time. These are all approximations, of course, but far superior to mere guesswork.To Crown or Not to Crown?
Everyone agrees that a bad crown (e.g. a linear profile with a sharp point in the middle!) is worse than no crown. After that, opinions diverge strongly. What is not in dispute is that the load applied to the steel roller will cause it to deform and the size of that deformation can be estimated readily via standard engineering. The Crown figure comes from the combined effect of the NipLoad applied evenly across the roller, the OD and ID of the steel roller, the standard modulus for steel and standard calculations via "moments of inertia". This figure is a good starting point for discussion. If the calculated crown is small then it is certainly not worth the time/expense of creating a crowned roller to compensate - the errors in the manufacture of the crowned roller will be larger than the crown itself. But hold on a moment. Suppose you have to double the line speed and want to keep the same integrated pressure. If this means increasing the NipLoad by a factor of 8 then the crown itself increases by a factor of 8 (these physics are linear) - so for high-speed running a crown might be necessary. That's why we have calculators - to allow you and the team to easily play around with ideas. The alternative to crowning is to have a thicker steel shell (i.e. smaller ID for a given OD) or to go to a narrower width - roller deflection goes as Width^3 for a given constant load.Please note that for simplicity the rubber roller is assumed to be non-deformable. The rubber roller diameter is used only for calculations involving nip pressure and footprint. It has been argued (rightly) that more often than not the rubber roller is the one more easily deflected. Just enter the values for the most deflectable roller into the "steel" roller values and the diameter of the other roller into the "rubber" OD.
